2-Port DP/USB 2.0 KVM Switch
Switching/Adapter provides the capability to share your monitor (DisplayPort) and keyboard/mouse with two computers as well as some of your USB peripherals. All cables are optional and not included.
• Video Signal Support - DisplayPort 1.1a (not 1.2 with MTS)
• Maximum Video Resolution - 2560x1600
• Video Inputs - DisplayPort Female x 2
• Video Outputs - DisplayPort Female x1

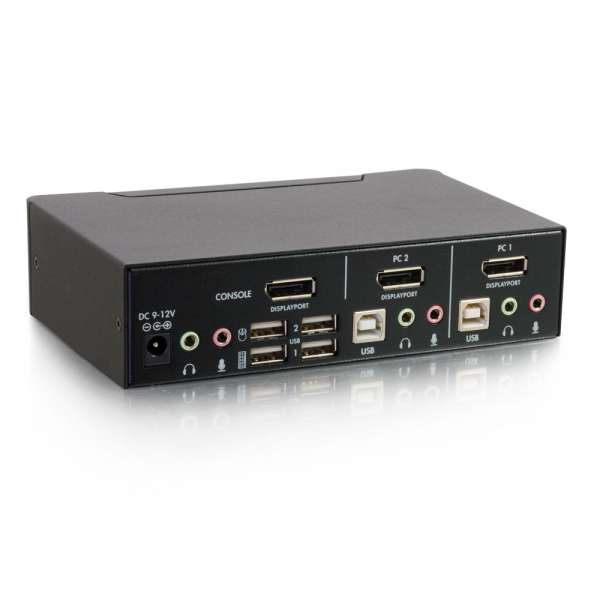

• Audio Ports - 3.5mm x 2 (Console), 3.5mm x 4 (Computer1-2)
• USB Ports - USB A Female x 4 (Console), USB B Female x 2 (Computer1-2)
• Enclosure - Metal
• Dimensions (HxWxD) - 1.58 x 6.3 x 3.94 in
The 2-Port DisplayPort + USB+ Audio KVM is perfect for those who need to use multiple computers and want to eliminate clutter from a desktop. This switch allows you to control two computers and one display with a single keyboard, mouse, set of speakers, and DisplayPort monitor. Connect the switch to your computers using USB, DisplayPort, and audio cables.

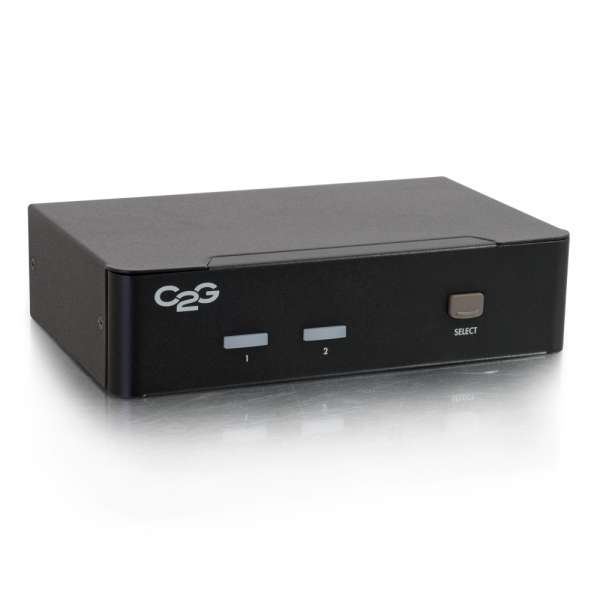

The four downstream USB 2.0 ports can be used to share USB peripherals. Two types of switching (push button & hot keys) enable you to operate the switch in the most effective way for your application.
Note: No cables are included. DisplayPort to DVI and DisplayPort to HDMI cables are optionally available. DisplayPort is an advanced variant of HDMI and you computers must have DP display outputs for this switch to work.
Note: Apple notes: Some devices such as the Apple SuperDrive look for Apple-specific signaling and will not work when connected through any USB hub. IOS and Apple device purchasers should check their devices for compatibility before ordering.
We do not warrant the product in any way, and no implied service contract is supplied with this purchase. We will complimentary answer questions resolved in 5 minutes or less, limited to 2x per month per account across all products and services. All other calls technical in nature will be billed at your normal account remote support rates in minimum 15 minute increments.
