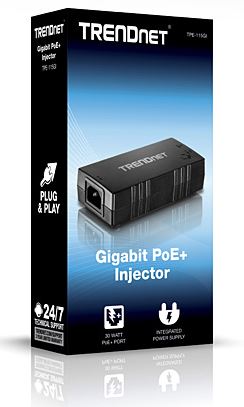

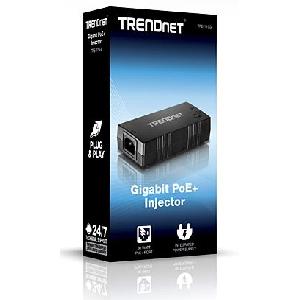

PoE Power Injector
• This unit works with both the PoE (15W) and PoE+ (30W) devices
• PoE InjectorColorBlackSpecificationsStandard: IEEE 802.3/3u/3ab, IEEE 802.3af Power over Ethernet

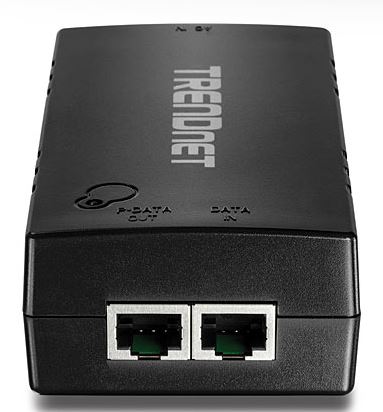

• 1 x 10/100/1000Mbps DATA-IN (Data only)

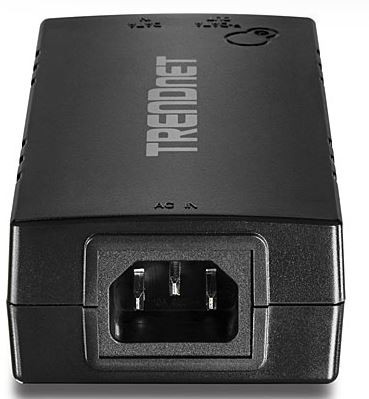

• 1 x Power-in
• 1 x 10/100/1000Mbps PWR+DATA OUT (Data + Power)
• Up to 100 Meters / 328 feet
• Recommend Cat 5e/Cat 6 for all runs (not included)
• Data Lines:
Pair 1: Pin 1, 2
Pair 2: Pin 3, 6
• Power:
Input: 100~240V, 50~60Hz, 0.65A max.
Output: 48V DC, 0.4A 18W max.
• Power Consumption: 30 Watts (max.)
• Dimensions (W x D x H): 5.2" x 2.5" x 1.4"
• Weight: 162 g (5.7 oz.)
Note: Requires a PoE splitter or PoE enabled device at the receiving end.
